1996 1996 Allied 70 For Sale





1996 Allied

Price: US$525,000

Propulsion Sail
Type Catamaran
Length 70’
Hull Fiberglass
Engine/Fuel Diesel
Year 1996
Location Keys, Florida, United States
1996 Allied

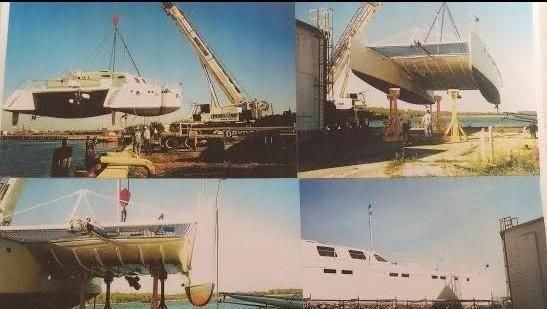

This Typhoon Class Catamaran is ultra light, fuel efficient and is a vacuum molded composite ATC Corecell, vinylester, epoxy resins, Kevlar, and carbon reinforcements. The "Typhoon" was built out starting in 1996 and put into service in mid year 2001. This is an unfinished yacht. The rig is in Charleston SC and the yacht is in the Keys. The sails are never used. The engines turn over but havent been run in a couple years. A mechanic said he could service engines and they should be OK. 574 hours on each engine.

Most equipment has never been run or used.

Hull is vacuum bagged nidacore. Electronics need updating. The yacht used to travel to Maryland in the summer and Florida in the winter. ZF Micro-commander.

Full Specs


Boat name

Typhoon

Specs

Make: Allied
Model: Atlantic Marine Custom 70
Condition: Used

Dimensions

Bridge Clearance: 110' 0''
LOA: 70' 0''
LWL: 66' 0''
Beam: 32' 0''
Maximum Draft: 10' 0''
Dry Weight: 32000.0 lbs

Engines


Make: Yanmar
Model: 4JH2 UTE Turbo
Year: 1996
Type: Inboard
Fuel: Diesel
Drive Type: Direct
Propeller Type: 3 Blade
Engine Power: 100hp
Engine Location: Port
Make: Yanmar
Model: 4JH2 UTE Turbo
Year: 1996
Type: Inboard
Fuel: Diesel
Drive Type: Direct
Propeller Type: 3 Blade
Engine Power: 100hp
Engine Location: Starboard

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 300 gal
Fuel Tank Material: Plastic

Accommodations

Number of cabins: 4
Number of heads: 4

Other

Drive Type: Direct

Galley

  • MONOGRAM: Radiant Cooktop
  • NUTONE: Stainless Steel Range Hood
  • MONOGRAM: Compactor
  • FISHER AND PAYKEL: Dishdrawer
  • CUISINART: Oven Broiler (?)
  • MONOGRAM: Microwave
  • HORIZONTAL: Under Cabinet Toaster
  • MAYTAG: MD-24 Dryer
  • MAYTAG: MAH-24 Washer
  • MONOGRAM: Stainless Steel Side Board Double Sink

Plumbing

  • GROCO: Paragon Senior 24v Pump
  • FLOW GUARD GOLD: Hot and Cold 1" Water System
  • GROCO: WSA-1000 Pump in Strainer
  • WELLMATE: Fiberglass Pressure Vessel WM-4
  • WHIRLPOOL: 12 Gallon Water Heater
  • HANSGROHE: Shower Panel
  • RARITAN: Atlantes 24v Heads (4ea)
  • RARITAN: Electra/San (4ea)
  • BALDWIN: Bath Fixtures
  • MOEN: Faucets
  • NUTONE: Light/Fan Fixture (3ea.)
  • SKANDVIK: Stainless Steel Sinks (4ea)

Deck

  • DUPONT IMRON: nonskid
  • LOOS: safety lines (3) 2" Stanchions
  • CAST ACRYLIC: 1/2" windows (10)
  • FORESPAR: Al. mast, and boom with furling system
  • DYFORM: Rigging-Double Dimond Single Spreader Rid
  • FORTRESS: Al. Anchor
  • MAX: G. H. T. S. Anchor
  • NEW ENGLAND: Rode 400' 1"
  • POLYFORM: F-10 Fenders
  • JOHNSON MARINE: Gate Hooks and Hardware
  • STEWART-WARNER: Halogen Spreader and Foredeck
  • AQUA SIGNAL: Running Lights and Anchor Light
  • PRO FURL: Headsail Furling, Titanium
  • FORESPAR MARLON: Thru hulls and Fittings
  • TNF: 316 Stainless Steel Hardware
  • DOYLE PLOCH: 8 Batten Mail Tri-Radial
  • DOYLE PLOCH: Roller Furling Jib Tri-Radial
  • RITCHIE: Compass
  • B G: Depth finder, speed and wind instruments
  • LEWMAR: Winches, deck hardware standing and running

Electronics

  • PANELTRONICS: 120/240v AC, 24v DC, Eight Panel Main System
  • WOETZ: Terminal Block Panel-Din 35mm rails
  • QUICKSILVER: Galvanic Isolators
  • WOETZ: Eight Load Centers with Din 35mm Rail System
  • SENTRY: Automatic Ferro-Resonant FR Series 24v 40 amp Battery Charger
  • CONCORD: Lifeline AGM GPL-4DL Batteries(4ea.)
  • CONCORD: Lifeline AGM GPL-1400 Engine Start Batteries (2ea.)
  • ZF MICROCOMMANDER: Autopilot
  • GARMIN: GPS
  • ICOM: VHF
  • STANDARD: VHF Handheld
  • RENSCH: Resolux 24v Electronic Ballast Fluorescent (15ea), and LED Lighting

Steering

  • KOBELT: Variable Delivery Helm Pump 7012
  • KOBELT: Autopilot Hydraulic 7201-RL Pump
  • KOBELT: Jog Lever 7170 Inside Helm
  • KOBELT: Tiller Arms
  • KOBELT: Twin Rudder Cylinders
  • EDSON: Quadrant-Drag Link System and Hardware
  • M.M. RUDDERS: Composite and Carbon
  • TIDES MARINE: Shaft Bearings
  • EDSON: 40" Stainless Steel Wheel
  • ALCOA: 6061 Al. Transverse Helm drag Link

Air Conditioning

  • AQUA AIR: Alpha Chiller 60K BTU Reverse Cycle Six(6) Fan Coil/Discharge
  • Units with Sapphire Digital Control Units, Inverter, Flow Switch
  • Remote Panel, Pump, Chill Water, Make Up Kit, Motors, Electrical
  • System and Plumbing. "NEVER RUN"

Engine And Mechanical

  • YANMAR: 4JH2 UTE 100h.p. Turbo with Intercooler
  • YANMAR: KWB 21 Marine Gear
  • AQUAMET: 22 Shafting
  • AQUA DRIVE SYSTEM: Eight constant velocity CVT units
  • ZF MICRO COMMANDER: Control Heads
  • ZF PROCESSOR: Standard Processor Features
  • YANMAR: Instrumentation, Inside and Outside Helms
  • DYNAJET: 20x 18 Propellers
  • PSS SHAFT SEAL: Packless Sealing Systems
  • CENTEX: Wet Exhaust System
  • JABSCO: 4" Blowers Flexmount 24v.
  • GROCO: ARG-500 Series Raw Water Strainers
  • SOUNDOWN: Noise Reduction Material
  • RACOR: 500 MA Fuel Filter/Water Separators
  • PHASOR: 9.5 kw Generator Set Kubota/Stanford
  • PARKER: R 205 Fuel Filter
  • FACET: 12v Fuel Pump Generator Day Tank
  • MARINE MUFFLER CORP: 150 0609 Water Lift Muffler
